Modular Rail Diagnostics System Integrates Multi-Sensor Monitoring

voestalpine Railway Systems has developed a modular diagnostic platform for rail infrastructure that integrates multiple sensing technologies into a unified system for monitoring passing trains. The system is designed to detect mechanical, thermal, and structural anomalies in rolling stock, supporting predictive maintenance and operational safety.

Multi-sensor architecture for comprehensive monitoring
The diagnostic system combines different sensor types—including infrared, acoustic, optical, and fiber-optic technologies—depending on application requirements. This multi-sensor approach enables simultaneous monitoring of various failure modes across wheels, axles, and vehicle structures.

By integrating these sensing technologies into a single platform, the system consolidates data acquisition and analysis, reducing the need for separate standalone monitoring installations along the track.

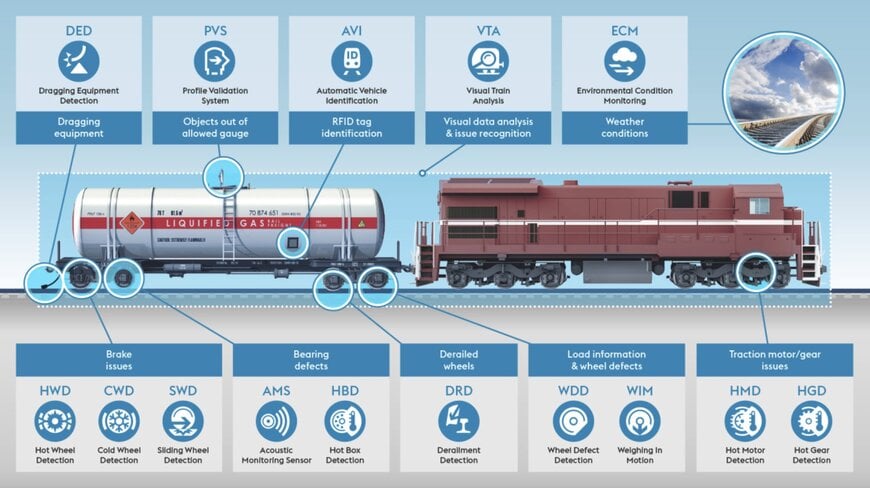

Detection of critical failure modes
The system supports multiple monitoring functions targeting key safety and maintenance risks in railway operations. Thermal monitoring detects overheating in axle bearings and wheels, which can indicate bearing defects or braking issues. Early identification of such conditions helps prevent severe failures such as axle breakage or derailment.

Mechanical condition monitoring is achieved through measurement of dynamic forces between wheel and rail. This enables detection of defects such as flat spots, out-of-round wheels, or surface damage, which can increase stress on both rolling stock and infrastructure.

In addition, weighing-in-motion functionality measures axle loads and identifies asymmetrical loading or overloading, providing insight into operational conditions that may accelerate wear or compromise safety.

Visual and acoustic diagnostics
Optical systems capture high-resolution images of passing trains using trackside cameras with integrated infrared illumination. This enables inspection under varying lighting conditions and supports identification of visible defects or anomalies.

Acoustic sensing complements this by detecting early-stage bearing defects through sound analysis. Unlike thermal detection, which identifies faults at a later stage, acoustic monitoring can identify issues before they affect operational performance, enabling earlier maintenance intervention.

The system also includes detection of dragging equipment, such as loose components that may damage infrastructure or pose safety risks.




Modular design and system integration
A key feature of the platform is its modular architecture, allowing operators to configure monitoring functions based on specific operational requirements. Functions can be combined and expanded without changing the core system, supporting scalable deployment.

The use of standardized hardware and software components across different monitoring functions simplifies maintenance and reduces spare parts inventory. This also enables consistent system behavior and easier integration into existing rail infrastructure.

Operational efficiency and decision support
By consolidating multiple diagnostic functions into a single system, the platform improves data availability and supports more informed decision-making. Operators can correlate data from different sensing modalities, enhancing the accuracy of fault detection and prioritization of maintenance actions.

The system’s low power consumption and redundancy options support deployment in various rail environments, including remote locations where reliability and availability are critical.
