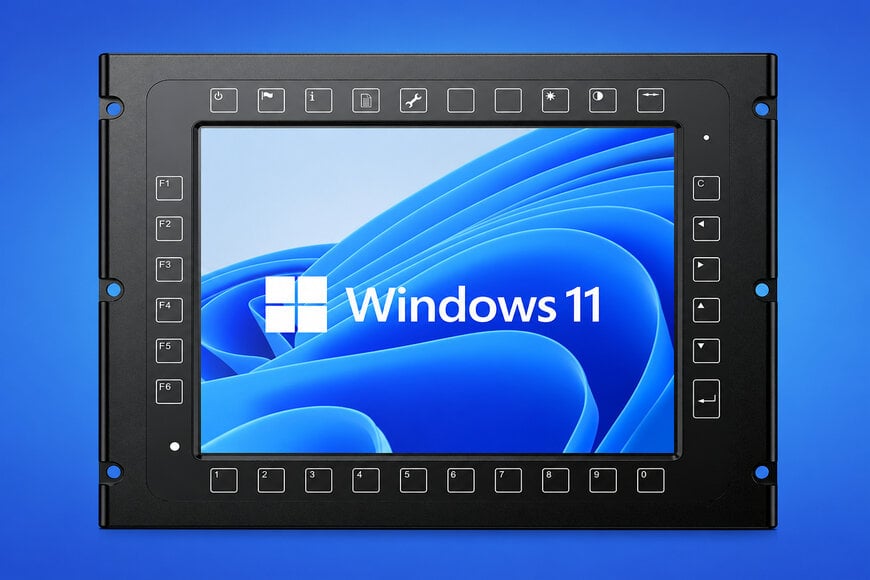

Railway Panel PC Supports Intelligent Train Computing

Railway operators require onboard computing platforms capable of processing operational data reliably under continuous vibration, temperature variations, and demanding environmental conditions. Darveen has introduced the TVP-310 Railway Panel PC, an EN 50155-certified industrial computer designed for driver interfaces, train control, and intelligent onboard systems across modern rail networks.

Industrial Computing Platform for Railway Applications
The TVP-310 is built around the Intel Atom x7433RE processor, providing a balance between computing performance and energy efficiency with a thermal design power (TDP) of 9 W. The processor reaches turbo frequencies of up to 3.4 GHz, supports DDR5 memory, and integrates 6 MB of cache with 32 Intel Graphics Execution Units to accelerate graphical interfaces and real-time processing.

These specifications enable the platform to support railway Human-Machine Interfaces (HMIs), Train Control and Management Systems (TCMS), and lightweight edge AI inference workloads where responsive visualization and continuous operation are required.

A 10.4-inch industrial touchscreen with 1,000 nits of brightness provides clear visibility in bright environments, including train driver cabins exposed to direct sunlight. The system also incorporates a UIC 612-01-compliant physical keyboard that maintains familiar operating procedures for railway personnel and supports operational consistency.

Extensive Industrial Connectivity for Onboard Integration
The TVP-310 includes multiple industrial communication interfaces to simplify integration with onboard equipment. Available interfaces include Gigabit Ethernet, USB, serial COM ports, GPIO, and CAN Bus for communication with sensors, controllers, and peripheral devices.

Industrial-grade M12 connectors improve connection stability by reducing the likelihood of cable disconnection caused by vibration and continuous train movement. Wireless communication options include Wi-Fi 6E, Bluetooth 5.3, 4G/5G cellular connectivity, and GNSS positioning, enabling reliable data transmission in high-speed railway environments.

Certified Rugged Design for Railway Environments
The panel PC has been designed to withstand the environmental conditions encountered in railway applications. EN 50155 certification confirms compliance with railway electronic equipment requirements, while MIL-STD-810H compliance demonstrates resistance to vibration and mechanical shock.

The system operates across a temperature range from -40°C to 70°C, allowing deployment in both cold and high-temperature operating environments. It supports a standard 9–36 VDC power input with an optional 43–160 VDC configuration, enabling compatibility with different onboard electrical systems. An IP65-rated front panel protects against dust and water ingress, helping reduce maintenance requirements during long-term operation.

Supporting Intelligent Railway Systems
The TVP-310 is intended for deployment across metro, light rail, high-speed rail, and other intelligent transportation systems. Typical applications include driver cab HMIs, Train Control and Management Systems, onboard monitoring, and edge computing platforms that process operational information directly within the train.

By combining railway certification, industrial durability, energy-efficient processing, and comprehensive wired and wireless connectivity, the platform addresses the requirements of modern digital railway infrastructure where reliable real-time computing is essential.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement

The TVP-310 enters a competitive market for railway-certified industrial computers alongside platforms from companies including Advantech, NEXCOM, Kontron, and AAEON. Compared with many existing railway panel PCs based on earlier Intel Atom or Intel Core platforms, the Intel Atom x7433RE processor offers improved power efficiency through a 9 W thermal design while supporting DDR5 memory and integrated graphics suitable for modern HMI visualization and lightweight edge AI workloads. The combination of EN 50155 certification, MIL-STD-810H compliance, Wi-Fi 6E, optional 5G connectivity, GNSS positioning, M12 industrial connectors, and optional wide-range power input makes the TVP-310 well suited for new railway deployments where onboard computing, communications, and real-time data processing must operate reliably under continuous vibration and challenging environmental conditions.
